Caravan Leaf Spring Suspension Repairs Brisbane

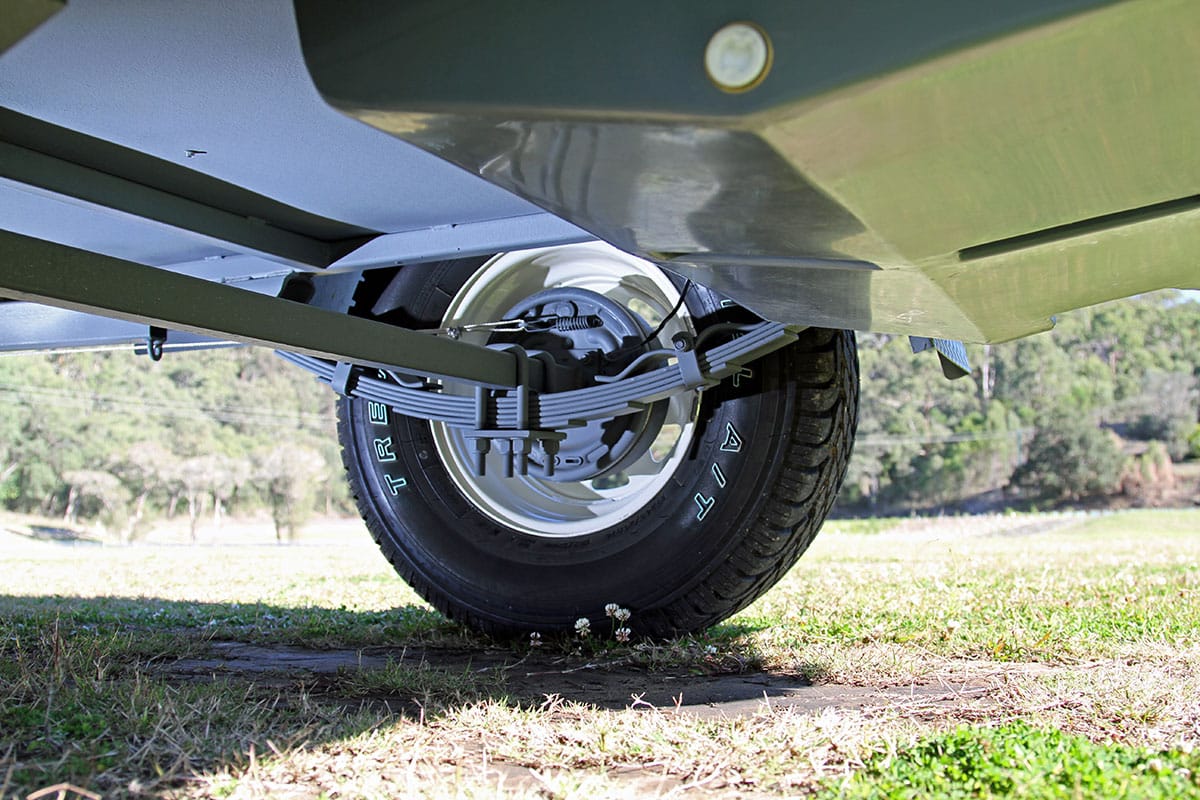

Leaf spring suspension uses one or more curved steel leaves clamped together to support the caravan and allow vertical wheel movement. The spring normally connects to chassis hangers through an eye, bush and shackle or a slipper arrangement. On tandem caravans, a rocker or equaliser may help share movement between the axles. U-bolts secure the axle to the spring assembly. Springs, bushes, shackles, hangers, rockers, U-bolts, axle seats, brakes, hubs and shock absorbers where fitted must work together as a complete system.

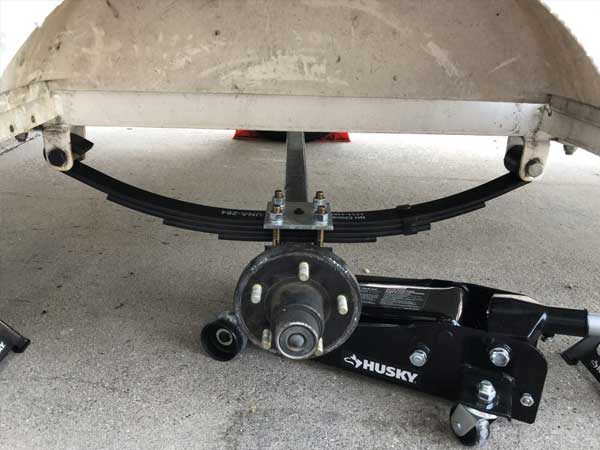

An eye-to-eye spring has formed eyes at both ends and usually connects to a fixed hanger at one end and a shackle or rocker arrangement at the other. A slipper spring generally has an eye at one end while the opposite end slides within a hanger or rocker. The systems use different hardware and installation geometry. Spring length, width, number of leaves, centre-bolt position, camber, capacity and mounting arrangement all matter. A spring should be identified and measured rather than replaced because it appears broadly similar.

Warning signs include cracked or broken leaves, flattening or loss of spring camber, a caravan leaning, uneven ride height, worn or distorted bushes, elongated spring eyes, loose or damaged shackles, rocker movement, shifted leaves and loose U-bolts. Clunks, squeaks, bottoming, poor tracking or abnormal tyre wear also justify inspection. These symptoms can overlap with loading, axle alignment, bearings, brakes, tyres or chassis damage, so the complete suspension and running gear should be assessed before individual parts are replaced.

Follow the caravan and suspension manufacturer’s service schedule because procedures differ between systems. Inspection may include springs, eyes, bushes, shackles, pins, hangers, rockers, U-bolts, axle seats, bump stops, shock absorbers, wheel bearings, brakes and tyres. Grease only the points and bush types specified by the manufacturer. New or disturbed components may require early torque checks. Off-road, dusty, muddy, flooded or corrosive use normally requires more frequent attention than sealed-road touring, and a visual pre-trip check does not replace scheduled servicing.

There is no fixed lifespan for every leaf spring. Durability depends on spring design, caravan weight, kilometres travelled, road conditions, corrosion, maintenance, impacts and whether the suspension has remained within its rated application. Springs can fatigue, flatten, crack or shift over time, while bushes and shackles may wear earlier. A caravan stored for long periods can still develop corrosion or seized components. Condition, loaded ride-height measurements and wear patterns are more useful than age alone when deciding whether springs or related hardware need replacement.

A cracked or broken suspension leaf is a structural failure and should not be treated as a routine welding repair. Welding or heating spring steel can change its material properties and may create another failure point. The correct response is normally replacement with a properly specified spring and inspection of the matching spring, U-bolts, axle seat, hangers, shackles, bushes, wheel, tyre and nearby chassis. The cause should also be considered, including overloading, corrosion, impact, axle misalignment or an unsuitable spring specification.

Replacing springs in matched pairs on the same axle is often appropriate because springs of different age, rate, camber or condition can support the caravan unevenly. On tandem systems, all springs and the load-sharing hardware should be assessed before deciding the scope. One spring may have failed from a local impact while the others remain serviceable, or several may show similar fatigue and wear. The recommendation depends on measurements, spring identification, caravan weights, system design and manufacturer guidance rather than a blanket rule applied to every caravan.

Cost depends on whether the caravan is single or tandem axle, the spring type and capacity, the condition of bushes, shackles, pins, rockers, U-bolts and hangers, and whether axle, brake, hub, alignment or chassis work is also required. A broken spring can damage surrounding parts, while obsolete or unidentified components may take longer to source. AllBrand needs the caravan details and normally a workshop inspection before confirming the repair scope, parts availability and accurate price. A cheaper spring is not suitable unless its specifications match the system.

Noise may come from worn or dry bushes, loose shackle pins, movement at hangers or rockers, shifted leaves, loose U-bolts, damaged spring eyes, shock absorber mounts or contact between components. Some leaf movement can produce normal sound, but a new or worsening clunk should not be ignored. Lubrication is not appropriate for every bush material and can attract contamination or damage some components, so do not spray products indiscriminately. The suspension should be inspected and serviced according to its design.

Possible causes include uneven loading, different tyre pressures, a flattened or broken spring, worn bushes, damaged shackles or rockers, loose U-bolts, a bent axle or chassis concern. Permanent items such as batteries, water tanks and appliances can create a substantial side-to-side weight difference. Compare the caravan on level ground in a known loaded condition, but never work beneath a van supported only by a jack. Weights, spring camber, ride height, hardware and axle position should be assessed before parts are selected.

Yes. Worn bushes, loose U-bolts, damaged springs, rocker or shackle movement and axle misalignment can alter wheel position and contribute to uneven tyre wear. Other possible causes include tyre pressure, overloading, poor weight distribution, bearing play, bent axles or spindles and impact damage. Replacing tyres alone may allow the wear pattern to return. Diagnosis should consider the loaded caravan, tyre pattern, axle position, wheel bearings, hubs, brakes, spring mounts and the alignment specifications for the actual suspension system.

Heavier springs do not by themselves increase the caravan’s legal ATM, GTM, axle ratings or payload. Those limits apply to the complete caravan and depend on the chassis, coupling, brakes, axles, hubs, tyres, wheels and other components. A stiffer spring can also create a harsher ride or transfer greater loads into the chassis if it is not correctly matched. Any proposed rating change requires a separate technical assessment and the appropriate engineering and regulatory process. Springs should be selected for the verified caravan and suspension design.

A leaf-spring system can sometimes be upgraded with correctly engineered springs, bushes, shackles, rockers, shock absorbers or other components, but one part does not make the complete caravan off-road capable. The chassis, hangers, axles, brakes, tyres, ground clearance, body construction and loaded weight must suit the intended terrain. More spring capacity is not automatically better. Manufacturer operating limits, correct installation and more frequent inspections after corrugations, dust, mud, water or impacts remain important.

Neither design is automatically better for every caravan. Leaf suspension is comparatively simple, familiar and often easier to inspect or source parts for in remote areas. Independent systems can provide different wheel movement, centre clearance and alignment features depending on the product. The choice should consider chassis design, ATM, axle configuration, road use, desired clearance, ride characteristics, maintenance expectations and parts support. A suspension upgrade should be evaluated as a complete engineered system rather than chosen solely on spring type.

U-bolts clamp the axle and spring assembly together and can lose effective tension because of initial bedding-in, incorrect torque, reused hardware, component settling, corrosion, damage or movement between mating surfaces. Loose U-bolts can allow the axle to shift, damage spring centre bolts or seats and affect alignment. Torque values and replacement requirements vary by system, and U-bolts should not be tightened by guesswork. New or disturbed suspension may require scheduled rechecks using the manufacturer’s procedure and a calibrated torque wrench.

Do not continue towing if a spring is broken, the axle has shifted, a shackle or hanger is damaged, a tyre is contacting the body, the caravan is leaning severely or towing stability has changed. Continued movement can damage tyres, brakes, wiring, the chassis and bodywork and may reduce vehicle control. Stop in a safe location and contact a qualified repairer or recovery provider. Temporary roadside improvisations may create additional risk. Photographs can assist an initial discussion but cannot confirm that the caravan is safe to move.

AllBrand Caravan Services provides caravan leaf spring suspension inspections, servicing, repairs and upgrade assessments at 101 Connaught Street, Sandgate QLD 4017, on Brisbane’s northside. We assist customers from Brisbane, Moreton Bay, Redcliffe, North Lakes, Brendale, Caboolture and surrounding areas. When requesting an assessment, provide the caravan make, model, year, ATM, axle configuration, symptoms and clear photographs. A workshop inspection may be required before the cause, parts, repair scope and price can be confirmed.
